Welded Pipes

Product

Trusted Welded Pipes Supplier In Malaysia

Saliran Group has over 10 years of expertise in the trading and supply of high-quality carbon steel welded pipes, with numerous happy customers all around the world. We supply a variety of carbon steel welded pipes and stainless steel welded pipes with different standards and specifications to meet your requirements.

Welded Pipes

What are Welded Pipes?

A welded pipe is made of long ribbon steel known as “skelp”. Skelp is cut into a flat rectangular sheet with a specific length. The rectangular sheet is then undergoing the ERW process where a rolling machine curls the long side towards one another. A cylinder is formed as a high-frequency voltage pass through the cylinder, resulting in it melting and fusing together. Welded pipes are customized to meet an extensive range of application requirements such as material grades and pressure.

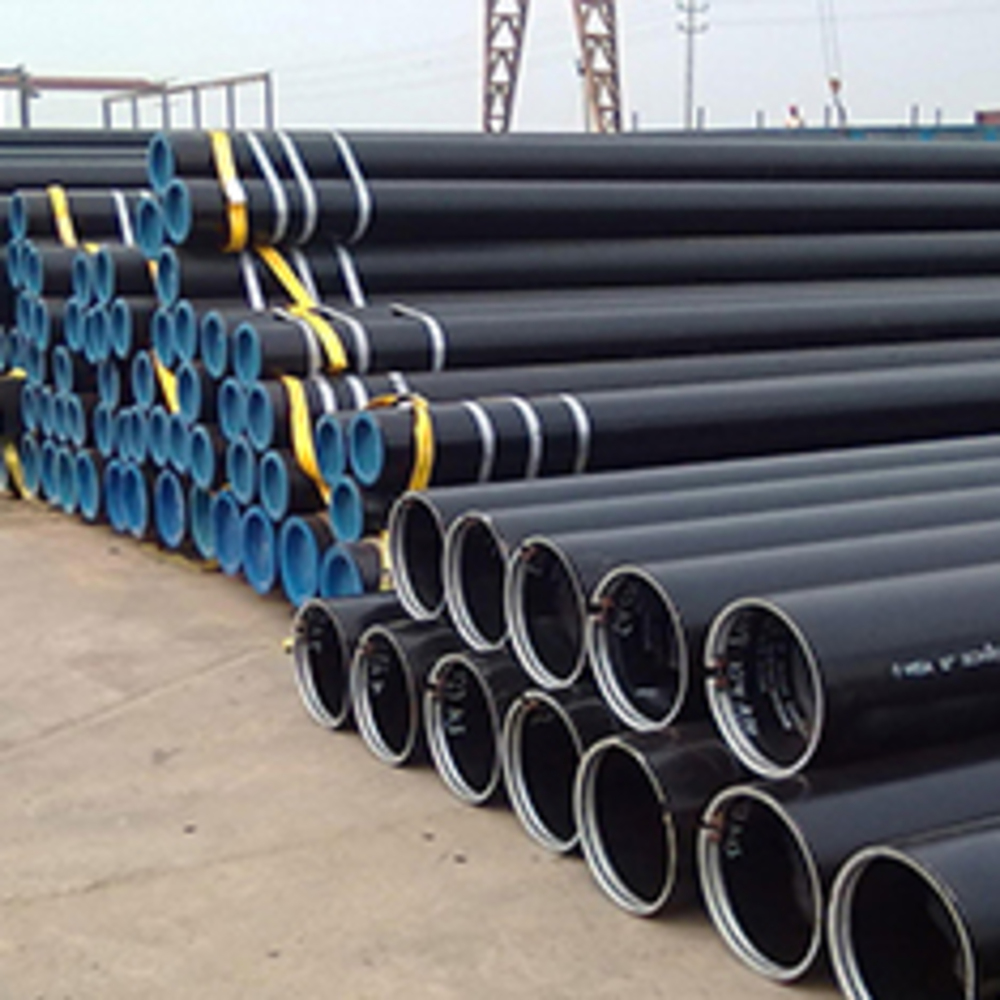

welded1

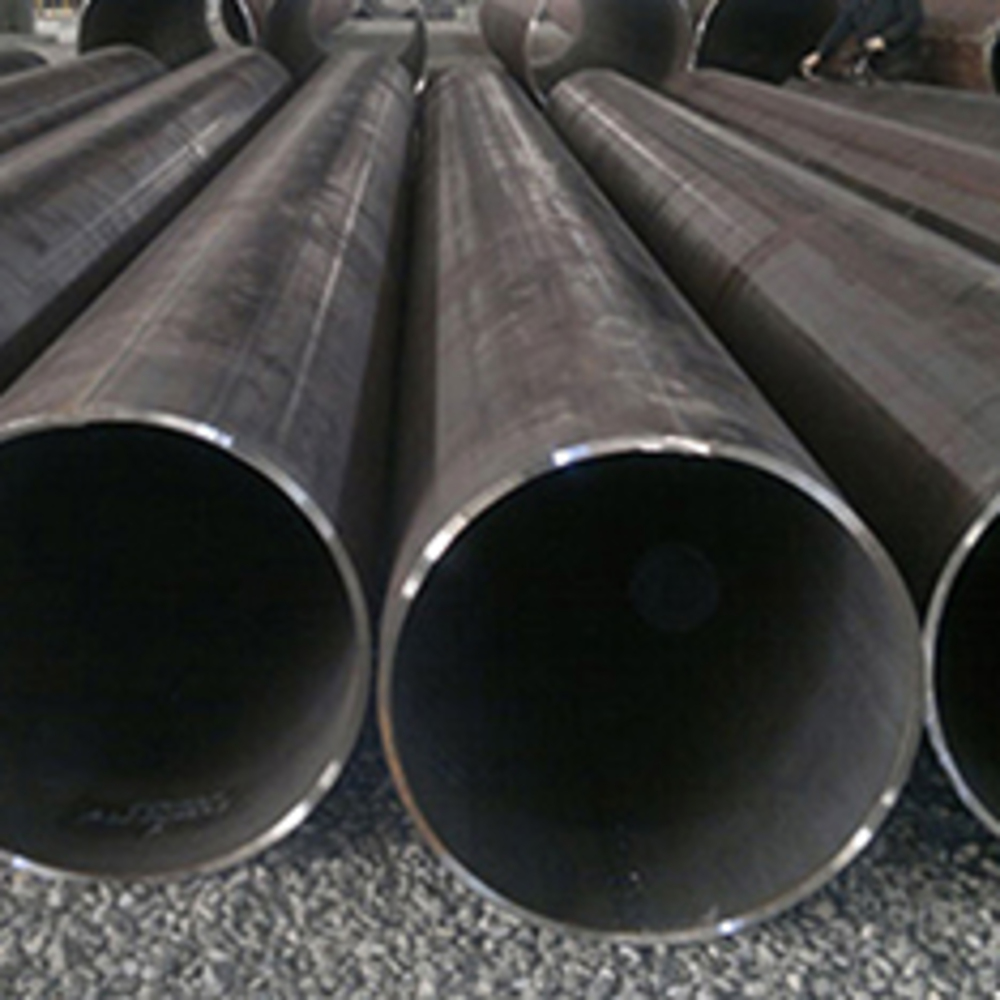

welded2

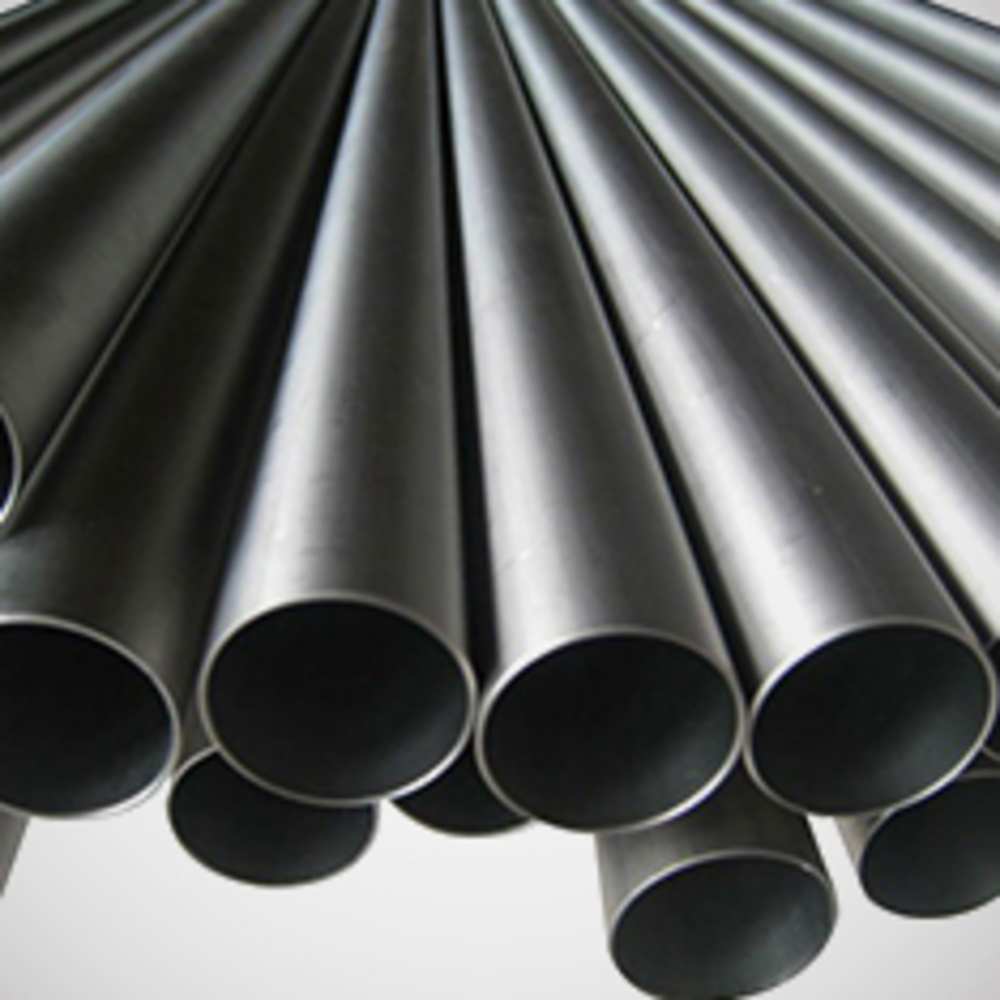

welded3

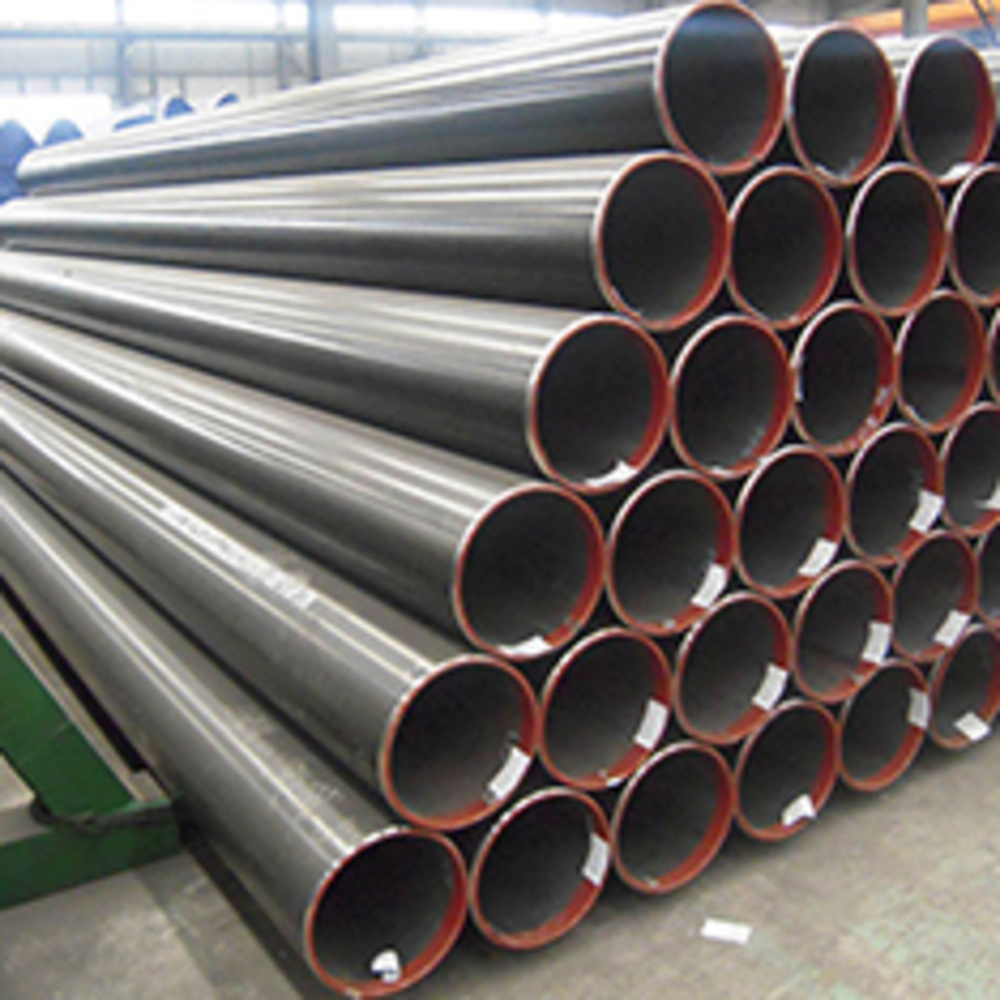

welded4
flange1
flange3
flange4
Flanges

What are Flanges?

According to Flange Supplier Malaysia, flanges are a ring or collar that connecting pipes, valves, and other appliances to form a piping system. These pipe flanges are usually welded to the pipe ends with the help of nuts and bolts. A flange joint is formed when a gasket is inserted between two mating flanges to establish a seal. These flanges are customized to meet an extensive range of application requirements such as material grades and pressure.

Welded Pipes

Product Information

Welded Line Pipe
Thickness 1/8″ (6mm), 1/4″ (8mm), 3/8″ (10mm), 1/2″ (15mm), 3/4″ (20mm), 1″ (25mm), 1-1/4″ (32mm), 1-1/2″ (40mm), 2″ (50mm), 2-1/2″ (65mm), 3″ (80mm), 3-1/2″ (90mm), 4″ (100mm), 5″ (125mm), 6″ (150mm), 8″ (200mm)
Standard API 5L, ASME/ANSI B36.10
NDT API 5L Annex E (as per client requirement)
Heat Treatment As per request
Coating Internal and external coating available as per request
Carbon Steel API 5L Gr.B
High Yield Carbon Steel API 5L X42/ 46/ 52/ 60/ 65/ 70 – PSL1/2
Low Temp Carbon Steel ASME/ASTM SA/A671 CC65 CL22
Stainless Steel ASME/ASTM SA/A312 304/304L, 316/316L, 317/317L,321/321H,310
Duplex / Super Duplex UNS S31803, S32205, S32750, S32760, S31254
ERW

2″ (50mm), 2-1/2″ (65mm), 3″ (80mm),

3-1/2″ (90mm), 4″ (100mm), 5″ (125mm), 6″ (150mm), 8″ (200mm),

10″ (250mm), 12″ (300mm), 14″ (350mm), 16″ (400mm), 18″ (450mm)

LSAW

16″ (400mm), 18″ (450mm), 20″ (500mm), 22″ (550mm), 24″ (600mm),

26″ (650mm), 28 (700mm)”, 30″ (750mm), 32″ (800mm), 34″ (850mm),

36″ (900mm), 38″ (950mm), 40″ (1000mm), 42″ (1050mm), 44″ (1100mm),

46″ (1150mm),   48″ (1200mm), 50″ (1250mm), 52″ (1300mm), 54″ (1350mm), 56″ (1400mm), 58″ (1450mm), 60″ (1500mm)

Explore Our Capabilities

Connect With Our Team For Product Enquiries

Get A Free Quote
Welded Pipes

Different of Stainless Steel Welded Pipe and Carbon Steel Welded Pipe

Composition

combines corrosion resistance and strength with a versatile alloy composition

Composition

Stainless Steel Welded Pipe is made from an alloy of iron with a minimum of 10.5% chromium content. Other alloying elements, such as nickel, molybdenum, and titanium, may also be present. The chromium content provides corrosion resistance and gives stainless steel its characteristic shine. Carbon steel is an alloy of iron with carbon content ranging from 0.05% to 2.0%. The carbon content gives carbon steel its strength but makes it more susceptible to corrosion compared to stainless steel.

Corrosion Resistance

provides excellent corrosion resistance for demanding and corrosive industrial environments

Corrosion Resistance

Stainless Steel Welded Pipe is known for its excellent corrosion resistance, especially against rust and staining. This makes it suitable for applications where resistance to corrosion is crucial, such as in the chemical, petrochemical, and food processing industries. Carbon Steel Welded Pipe is stronger than stainless steel welded pipe, it is more susceptible to corrosion compared to stainless steel. Protective coatings or treatments are often applied to carbon steel pipes for certain applications, but they may still require more maintenance to prevent corrosion.

Applications

supports diverse industrial applications requiring strength, durability, hygiene, and corrosion resistance

Applications

Stainless Steel Welded Pipe is widely used in industries where corrosion resistance is essential, such as chemical processing, oil and gas, food processing, pharmaceuticals, and construction. Stainless steel pipes are also common in applications where hygiene and cleanliness are critical. Carbon Steel Welded Pipe is commonly used in applications where strength and durability are the primary considerations, such as in the construction of buildings, bridges, and pipelines for the transportation of non-corrosive fluids. Carbon steel pipes are often more cost-effective than stainless steel pipes.

Cost

offers a cost-effective piping solution for a wide range of industrial applications

Cost

Typically Stainless Steel Welded Pipe is more expensive than carbon steel due to the higher cost of alloying elements, especially chromium and nickel. Generally Carbon Steel Welded Pipe is more cost-effective than stainless steel, making it a popular choice for a wide range of applications.
