Trusted Pipe Fittings Supplier Malaysia
Saliran Group is one of Pipe Fitting Supplier in Malaysia, Saliran Group has over 10 years of expertise in the trading and supply of high-quality butt weld fittings with numerous happy customers all around the world. We are the leading Pipe Fitting Supplier Malaysia that supply a variety of flange types such as 45, 90 & 180 degrees elbow, long, short radius & 3D elbow reducer, concentric & Eccentric reducer, equal & reducing tee, and end cap.
What are Butt Weld Fittings?
A Pipe Fitting Malaysia is a component that functions as changing flow direction, branching, changing pipe diameter, or attaching off-line equipment in a piping system. These butt weld fittings are usually made by a seamless pipes or welded pipes via various processes, resulting in different shapes and angles such as elbows, tee, and reducer. Butt Weld Fittings Malaysia are customized to meet an extensive range of application requirements such as material grades and pressure.
What are Butt Weld Fittings ?
According to Flange Supplier Malaysia, flanges are a ring or collar that connecting pipes, valves, and other appliances to form a piping system. These pipe flanges are usually welded to the pipe ends with the help of nuts and bolts. A flange joint is formed when a gasket is inserted between two mating flanges to establish a seal. These flanges are customized to meet an extensive range of application requirements such as material grades and pressure.
Product Information
| Types of Butt Weld Fittings Types | ||
|---|---|---|

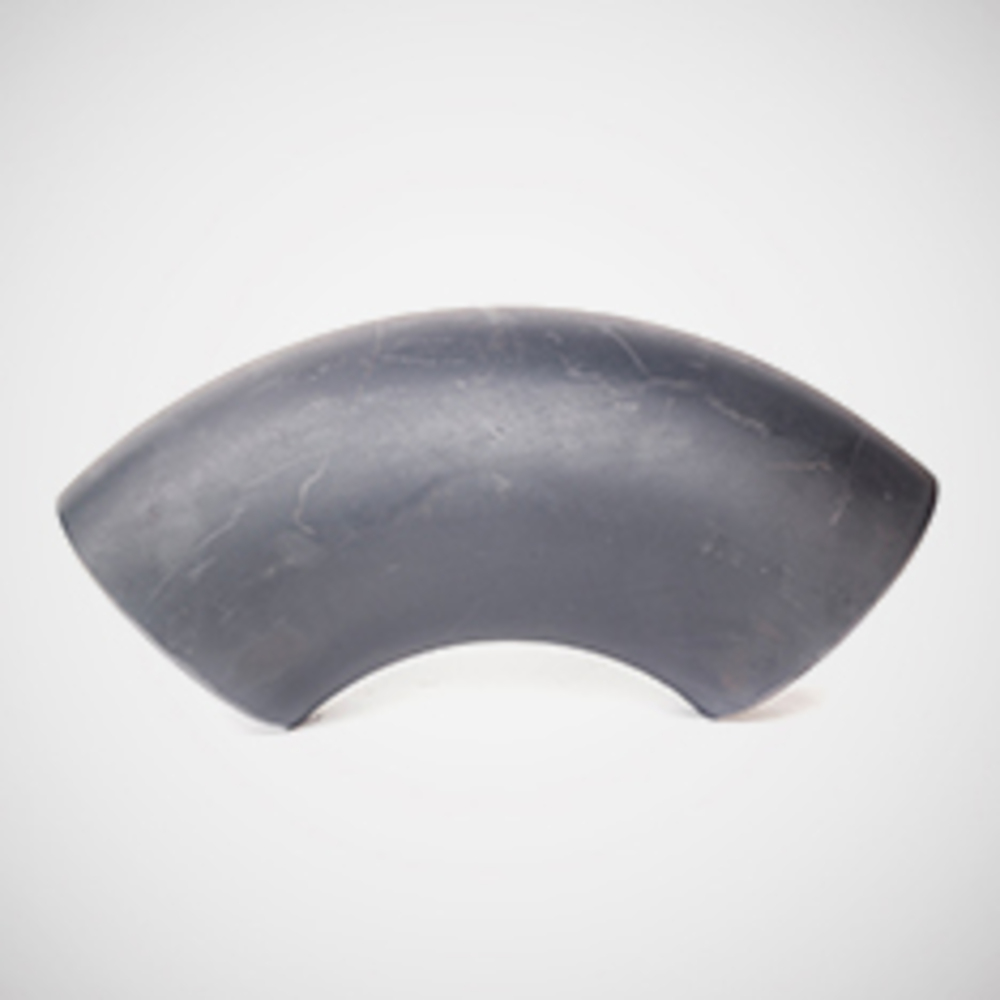

| Type | Elbow Fittings | Long, Short Radius, 3D |
| 45 Degrees, 90 Degress & 180 Degrees | ||

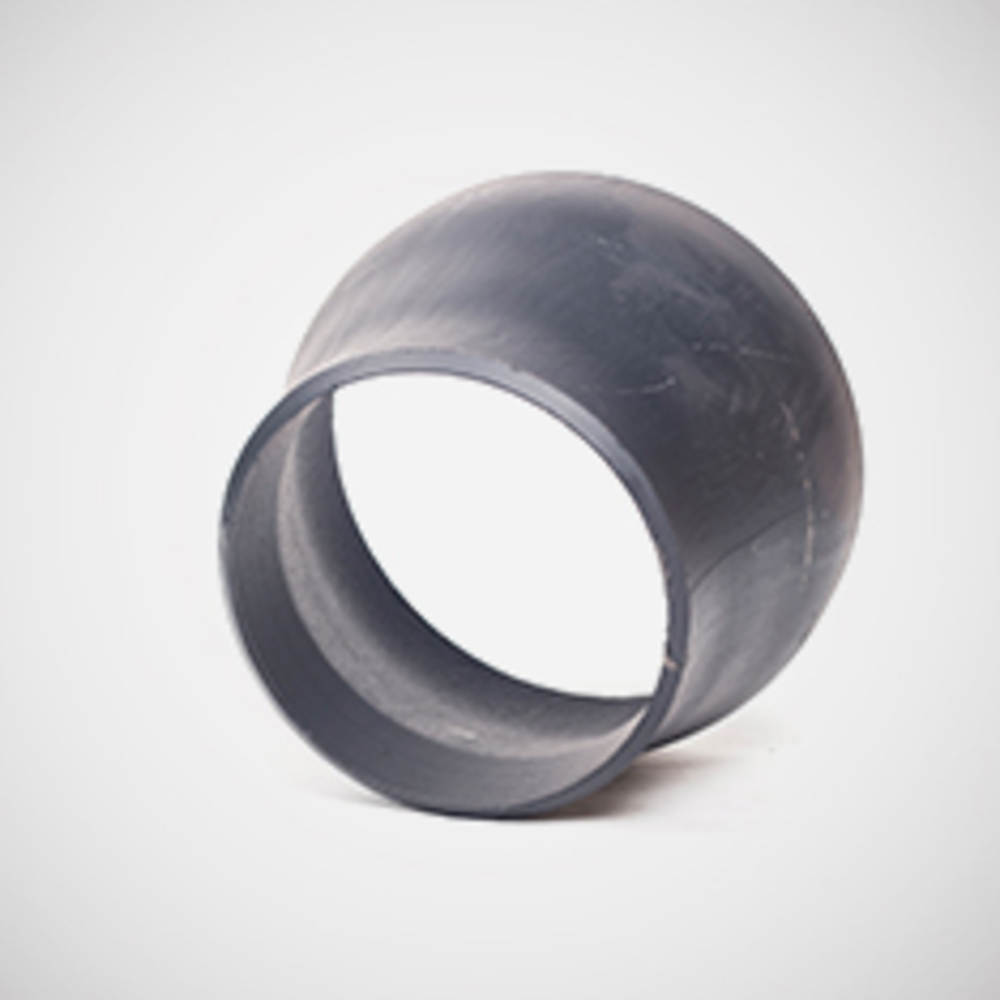

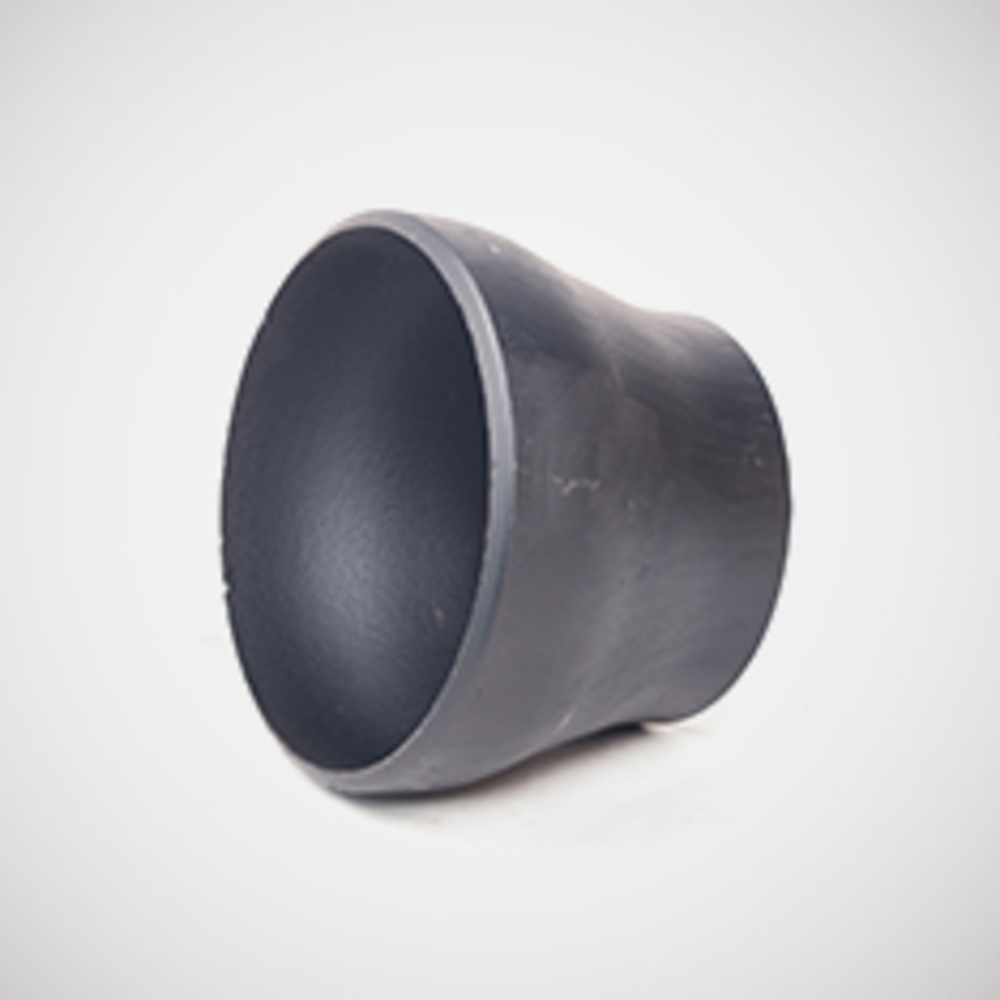

| Reducer Fittings | Concentric & Eccentric | |

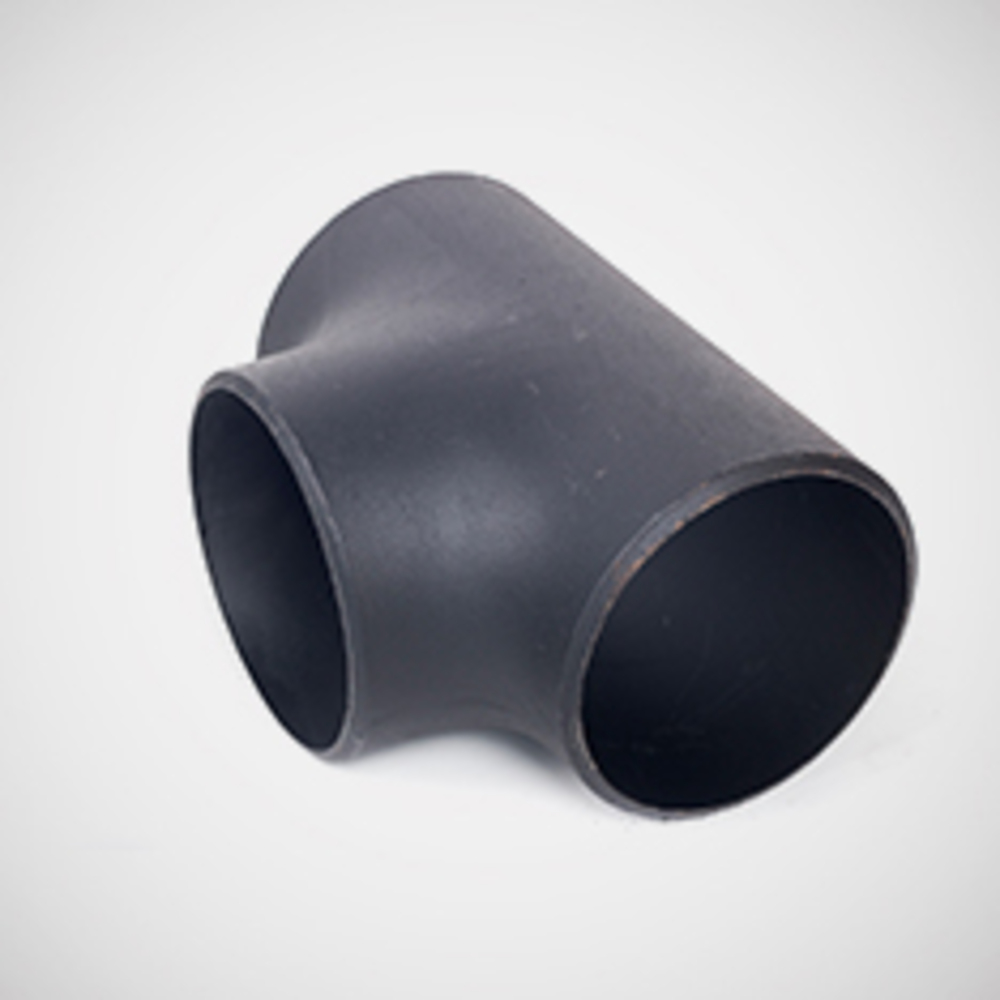

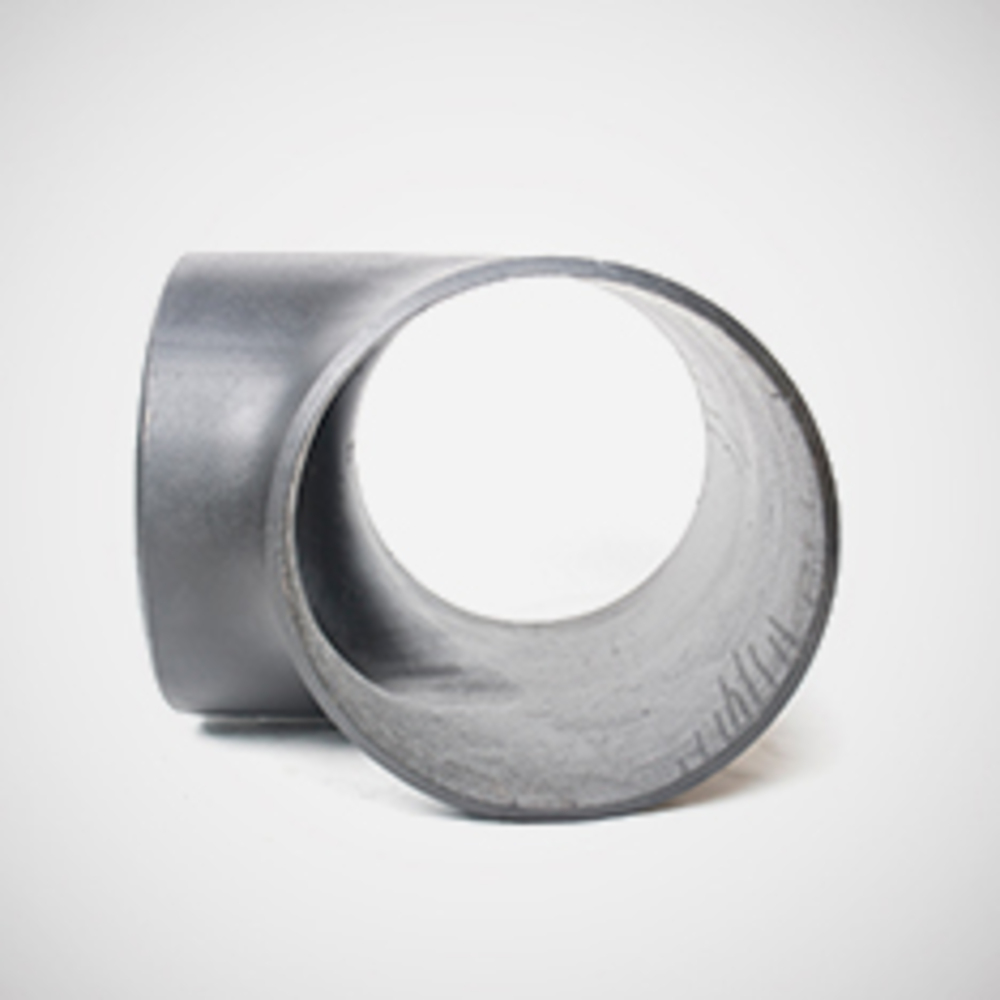

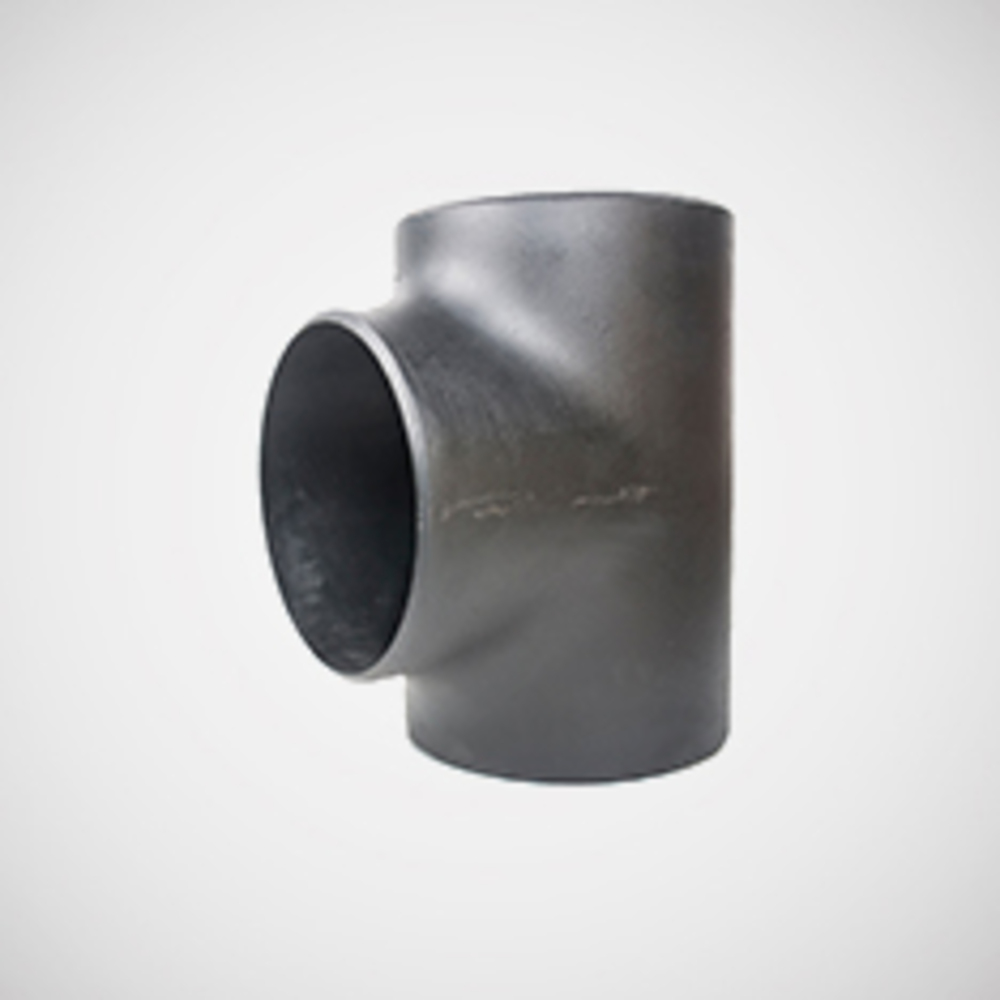

| Tee Fittings | Equal & Reducing | |
| End Cap Fittings | – | |
| Size Range | 1/2″ (15mm), 3/4″ (20mm), 1″(25mm), 1-1/4″ (32mm), 1-1/2″ (40mm), 2″ (50mm), 2-1/2″ (65mm), 3″ (80mm), 3-1/2″ (90mm), 4″ (100mm), 5″(125mm), 6″ (150mm), 8″ (200mm), 10″ (250mm), 12″ (300mm), 14″ (350mm), 16″ (400mm), 18″ (450mm), 20″ (500mm), 22″ (550mm), 24″ (600mm), 26″ (650mm), 28″ (700mm), 30″ (750mm), 32″ (800mm), 34″ (850mm), 36″ (900mm), 48″ (1200mm) | |
| Wall Thickness | SCH 10, SCH 20, SCH 30, SCH 40, SCH 60, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160， SCH STD, SCH XS, SCH XXS， SCH 10s, SCH 40s, SCH 80s | |
| Standard | ASME B16.9, ASME B16.28, MSS SP-75 | |
| Carbon Steel | ASME/ASTM SA/A234-WPB, WPC |
|---|---|
| High Yield Carbon Steel | ASTM A860 WPHY 42/ 46/ 52/ 60/ 65/ 70 |
| Low Temp Carbon Steel | ASME/ASTM SA/A420 WPL6 |
| Chrome Moly | ASME/ASTM SA/A234-WP5, WP9, WP11, WP12, WP22, WP91 |
| Stainless Steel | ASME/ASTM SA/A403WP 304/304L, 316/316L, 309, 304H, 310S, 317, 321, 321H, 347, 347H, 904L |
| Duplex/ Super Duplex |
ASME/ASTM SA/A815 UNS S31803 / S32205 / S32750 / S32760 |
| Nickel Alloy | ASME/ASTM SB366, UNS N02200 (Nickel 200), UNS N02201 (Nickel 201)， UNS N04400 (Monel 400), UNS N06600 (Inconel 600)， UNS N06601 (Inconel 601), UNS N06625 (Inconel 625)， UNS N08810 (Incoloy 800H), UNS N08811 (Incoloy 800HT)， UNS N08825 (Inconel 825), UNS N010276 (Hastelloy C276) |
| Remark | HIC, PED 2014/68/EU, NACE MR0175, NORSOK available |
