Trusted Barred Tee Supplier In Malaysia
Saliran Group has over 10 years of expertise in the supply of high-quality Barred Tee with numerous happy customers all around the world. We supply a variety of valve types such as equal and reducing, seamless, welded, as well as forging barred tee.

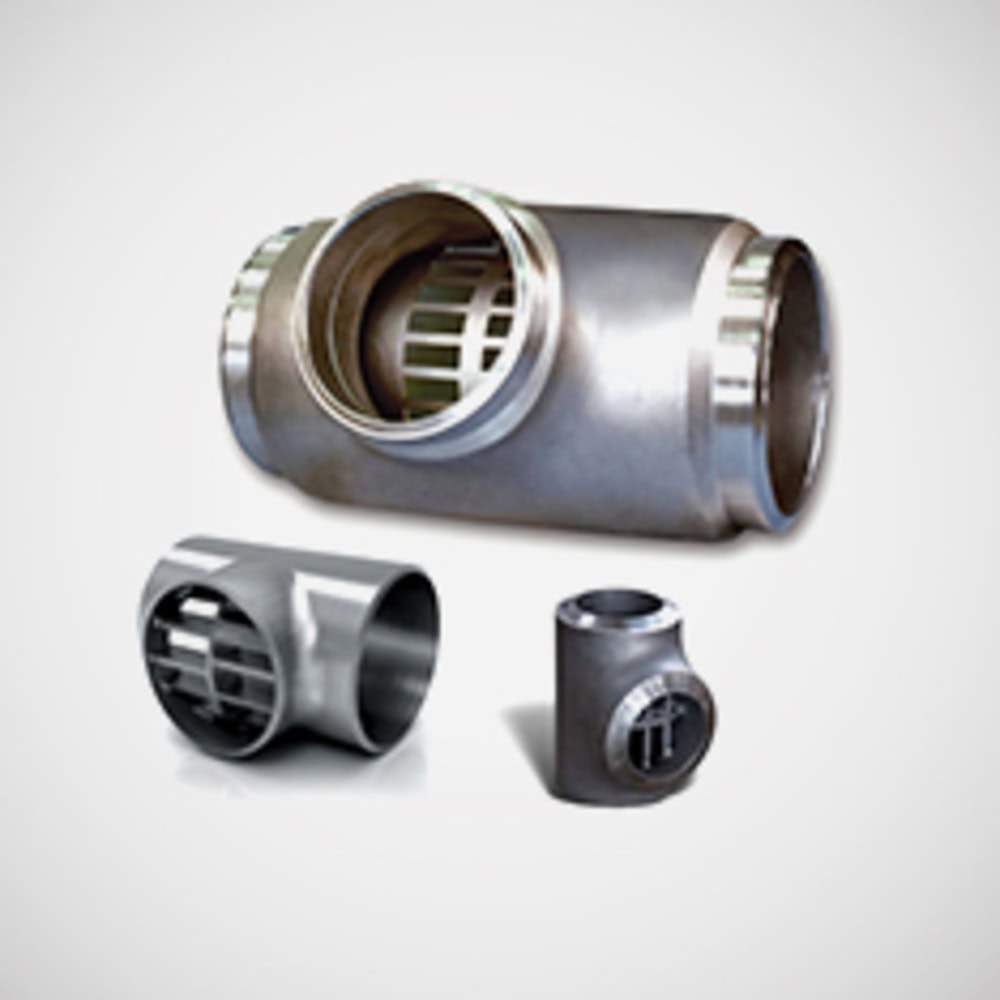

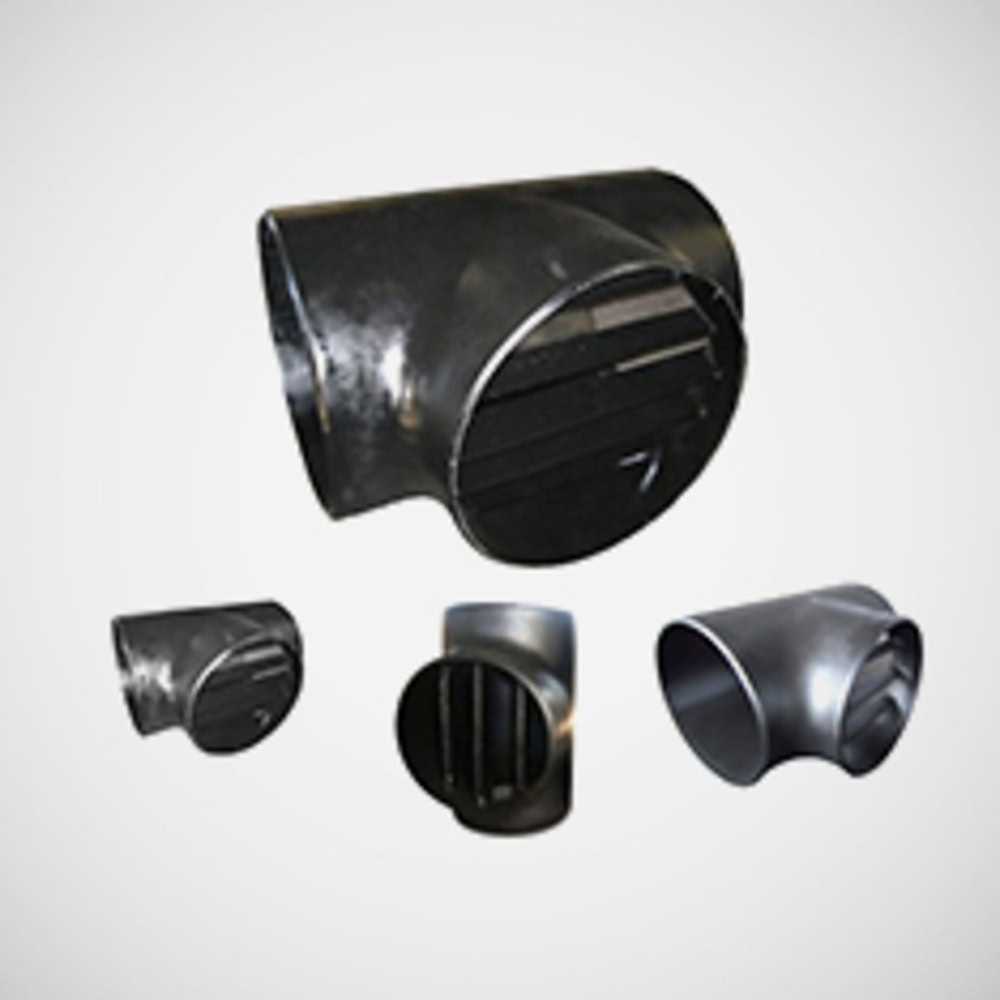

What are Barred Tee?
Barred Tee is also known as a pigged tee, is a tee that is used in a pipe system to ensure the pig pass through the branch smoothly and safely. A bar is installed inside the internal side of the tee to prevent the pig from running out from the branch of the main pipe. To ensure branch connection not be restricted, size tees should not be a small size as well.
What are Flanges?
According to Flange Supplier Malaysia, flanges are a ring or collar that connecting pipes, valves, and other appliances to form a piping system. These pipe flanges are usually welded to the pipe ends with the help of nuts and bolts. A flange joint is formed when a gasket is inserted between two mating flanges to establish a seal. These flanges are customized to meet an extensive range of application requirements such as material grades and pressure.
Product Information
| Types | Equal and Reducing Seamless, Welded, Forging | |
|---|---|---|
| Size Range | 4” (100mm) to 48” (1200mm) | |
| Wall Thickness | As per customer’s requirement & design | Standard | ASME B16.9, MMS SP-75 |
| Bar | Quantity and size as per customer’s request or by our own design | |
| Carbon Steel | ASME/ASTM SA/A234-WPB, WPC |
|---|---|
| High Yield Carbon Steel | ASTM A860 WPHY 42/ 46/ 52/ 60/ 65/ 70 |
| Low Temp Carbon Steel | ASME/ASTM SA/A420 WPL6 |
| Chrome Moly | ASME/ASTM SA/A234-WP5, WP9, WP11, WP12, WP22, WP91 |
| Stainless Steel | ASME/ASTM SA/A403WP 304/304L, 316/316L, 309, 304H, 310S, 317, 321, 321H, 347, 347H, 904L |
| Duplex/ Super Duplex | ASME/ASTM SA/A815 UNS S31803 / S32205 / S32750 / S32760 |
| Nickel Alloy |
ASME/ASTM SB366, UNS N02200 (Nickel 200), UNS N02201 (Nickle 201) UNS N04400 (Monel 400), UNS N06600 (Inconel 600) UNS N06601 (Inconel 601), UNS N06625 (Inconel 625) UNS N08810 (Incoloy 800H), UNS N08811 (Incoloy 800HT) UNS N08825 (Inconel 825), UNS N010276 (Hastelloy C276) |
| Remark | HIC, PED 2014/68/EU, NACE MR0175 available |
Connect With Our Team For Product Enquiries
Types of Valves
Ball Valve Supplier in Malaysia
provides quick and reliable flow control with a compact quarter-turn design
Ball Valve Supplier in Malaysia
Saliran Group is a Ball Valve Malaysia supplier. As a ball valve supplier, we do supply a large selection of ball valve. A ball valve is a rotary motion valve with a quarter-turn that controls the flow of air by rotating a disc with a ball form. The majority of Ball Valve Malaysia is quick-acting, which means that in order to open the valve, the handle must be turned 90 degrees. Compared to a gate valve of the same size and rating, the Ball Valve Malaysia is smaller and lighter.
Gate Valve Supplier in Malaysia
provides effective shutoff and reliable flow control across various fluid applications
Gate Valve Supplier in Malaysia
Saliran Group is also a trusted gate valve supplier in Malaysia. As one of Malaysia’s gate valve suppliers, we provide dependable and high-quality valve. The most typical type of valve in every process plant is the gate valve. It is a linear motion valve for controlling the flow of fluid. These Valves Malaysia are either fully open or totally closed while they are in use. Almost all fluid services, including air, fuel gas, feed water, steam, lubricating oil, hydrocarbon, and most other services, employ gate valves. Gate valve offers effective shutoff.
Feature of Ball Valve
delivers fast, precise flow control with compact design and excellent sealing performance
Advantages of Seamless Pipes
Known for their excellent ability to regulate fluid flow, ball valves are indispensable components in a variety of industrial applications. These well manufactured valves offer important features that contribute to their reliability and efficiency. The quarter-turn rotational motion of the ball in the valve body provides fast, precise flow control and increased operational flexibility. In addition, the ball valve’s compact profile makes it easy to install and maintain. With excellent sealing performance, ball valves minimize leakage and ensure air and water tightness. Featuring fast actuation, compactness and sealing, ball valves are ideal for critical industrial processes.
Feature of Gate Valve
provides reliable shutoff, minimal pressure drop, and durable performance in high-pressure applications
Feature of Gate Valve
Gate valves are well-known for their sturdy construction and accurate flow control capabilities. They are used in a variety of industrial operations. These valves contain a variety of qualities that add to their effectiveness and dependability. Gate valves’ linear motion enables for accurate opening and shutting, resulting in good flow management. At full open or full closed, pressure drop is minimized, guaranteeing efficient operation. Furthermore, the sturdy wedge gate design and tight sealing mechanism of the gate valve provide good shutdown performance and prevent leakage even at high pressure settings. Gate valves are the top option for essential industrial applications due to their ideal mix of precise flow control, outstanding shutdown capabilities, and longevity, assuring smooth and safe operation.
