Trusted Orifice Plates and Flanges Supplier In Malaysia
Saliran Group has over 10 years of expertise in the supply of high-quality Orifice Plate and Flanges with numerous happy customers all around the world.

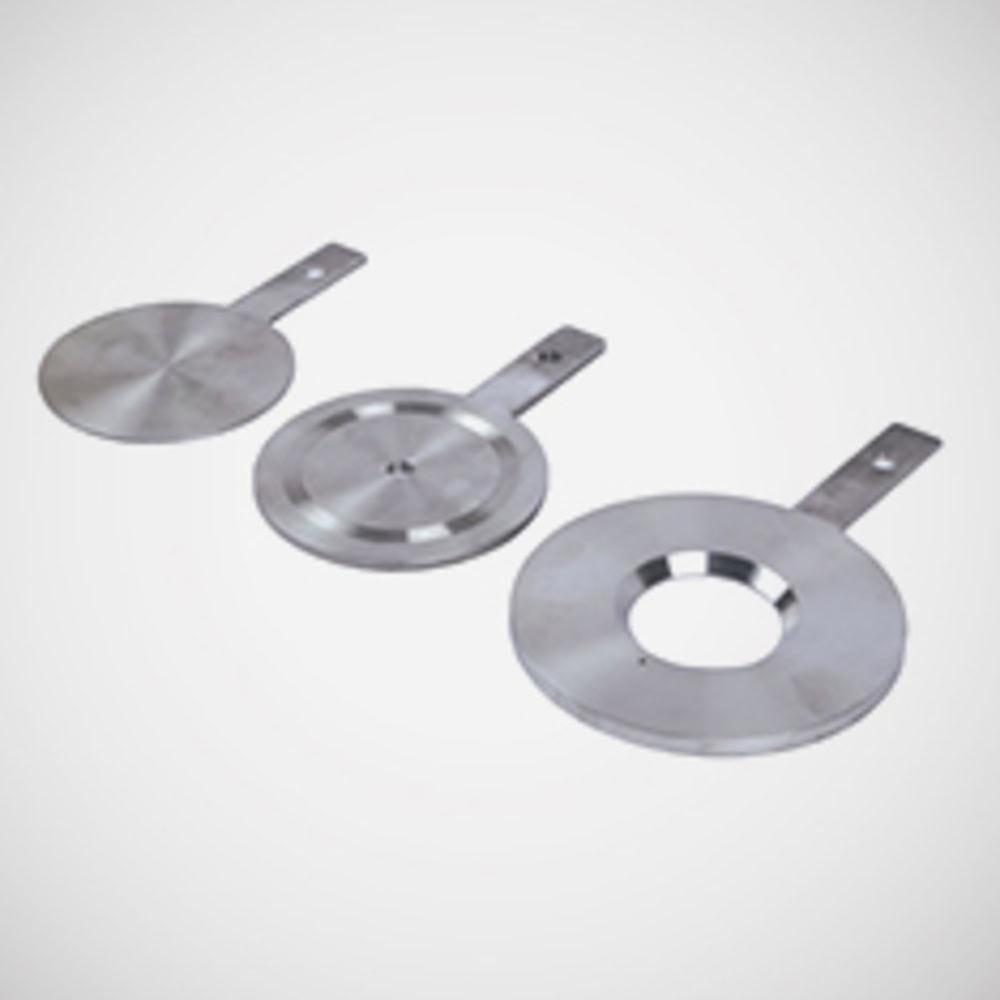

What are Orifice Plates and Flanges?
An orifice plate is a thin plate consists of a hole located in the middle of the plate, in which a pipe is inserted inside the hole. Orifice functioning as flow measuring or metering solutions. These Orifice Plates are often used to measure flow rates in a pipe using published formulae. Orifice plates is known as restriction plates which use to reduce pressure and restrict flow.

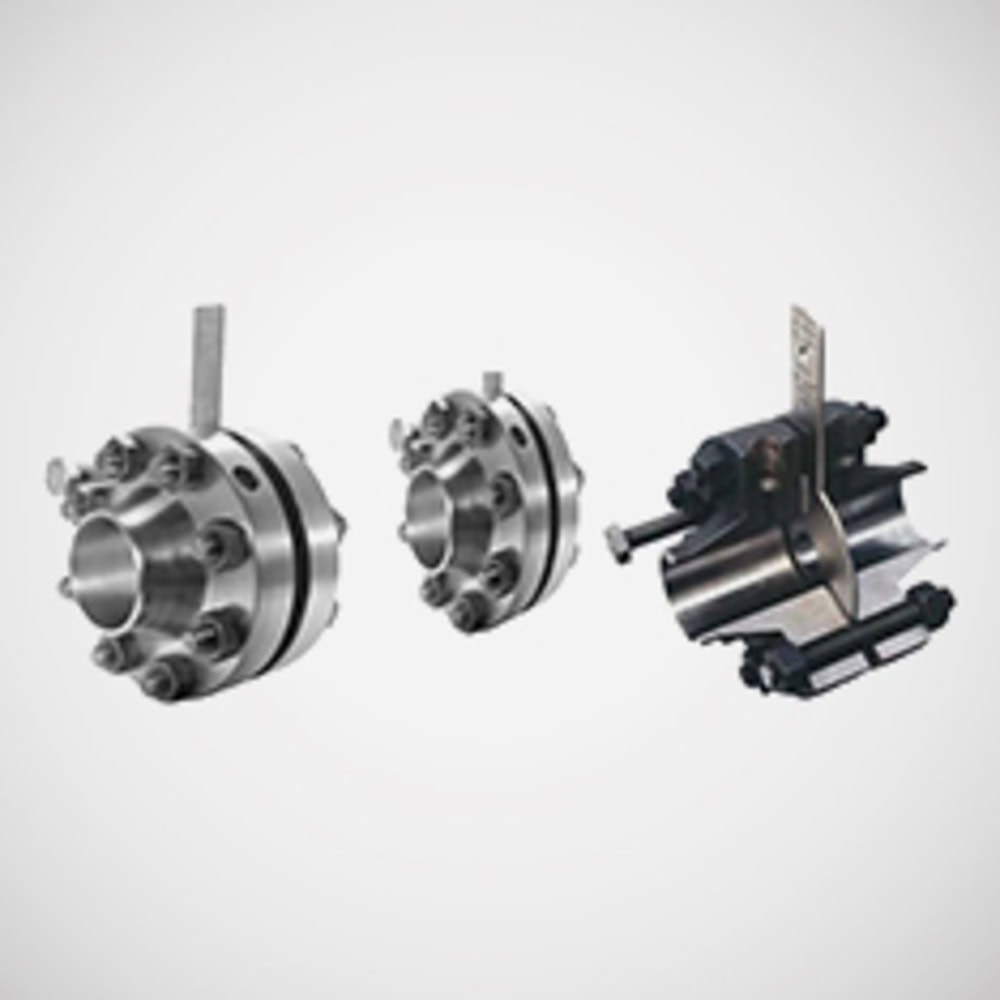

What are Flanges?
According to Flange Supplier Malaysia, flanges are a ring or collar that connecting pipes, valves, and other appliances to form a piping system. These pipe flanges are usually welded to the pipe ends with the help of nuts and bolts. A flange joint is formed when a gasket is inserted between two mating flanges to establish a seal. These flanges are customized to meet an extensive range of application requirements such as material grades and pressure.
Product Information
| Size Range | 1″ (25mm) ~ 24″ (600mm) | |
| Class | 300lbs ~ 2500lbs | |
|---|---|---|
| Type Available | RF, RTJ, FF | |
| Schedule | SCH 10, 20, 30, 40, 60, 80, 100, 120, 140, 160 SCH STD, XS, XXS SCH 10s, 40s, 80s | |
| Standard | Orifice Plate Follow Customer’s Drawing (Petronas, Shell, Exxon), Orifice Flange ASME B16.36 | |
| Specification | Carbon Steel | ASME/ASTM SA/A105N |
| High Yield Carbon Steel | ASTM A694 F42/ 46/ 52/ 60/ 65/ 70 ASTM A707 L1 ~ L8 | |
| Low Temp Carbon Steel | ASME/ASTM SA/A350 LF1/ 2/ 3/ 6 | |
| Chrome Moly | ASME/ASTM SA/A182F2, F5, F9, F11, F12, F22, F91 | |
| Stainless Steel | ASME/ASTM SA/A182F304/304L, 316/316L, 309, 310, 304H, 310H, 317/317L, 321, 321H, 347, 347H, 904L | |
| Duplex/ Super Duplex | UNS S31803, S32205, S32750 ASME/ASTM SA/A182F51, 53, 55, 60 | |
| Nickel Alloy | ASME/ASTM SB564, UNS N02200 (Nickel 200), UNS N02201 (Nickel 201) UNS N04400 (Monel 400), UNCS N06600 (Inconel 600) UNS N06601 (Inconel 601), UNS N06625 (Inconel 625) UNS N08810 (Incoloy 800H), UNS N08811 (Incoloy 800HT) UNS N08825 (Inconel 825), UNS N010276 (Hastelloy C276) | |
| Remark | HIC, PED 2014/68/EU, NACE MR0175 available | |
| Applications | Power Generation, Oil Production and Refining, Water Treatment and Distribution, Gas Processing and Transmission, Chemical and Petrochemical Industries. |
|---|
