Flanges
Flanges
Saliran Group has over 10 years expertise in the trading and supply of high-quality forged flanges with numerous happy customers all around the world. Saliran Group is leading Flanges Supplier in Malaysia for flanges. We have been supplying flanges for more than ten years. The highest quality flanges are what Saliran Group offer as a flange supplier in Malaysia. We supply variety of flanges types such as blind flange, slip-on, weld neck flange, socket weld, threaded, lap joint flange, and orifice.
What are Flanges?
According to Flange Supplier Malaysia, flanges are a ring or collar that connecting pipes, valves, and other appliances to form a piping system. These pipe flanges are usually welded to the pipe ends with the help of nuts and bolts. A flange joint is formed when a gasket is inserted between two mating flanges to establish a seal. These flanges are customized to meet an extensive range of application requirements such as material grades and pressure.
Product Information
Product Details
| Type | Blind Flange, Slip on Flange, Welding Neck Flange, Socket Weld Flange, Threaded Flange, Lap Joint Flange, Anchor Flange, Orifice Flange |
|---|---|
| Size Range | 1/2″ (15mm) – 48″ (1200mm) |
| Class | 150#, 300#, 600#, 900#, 1500#, 2500# |
| Type Available | Raised Face RF, Ring Type Joint RTJ, Flat Face FF, Male & Female M&F, Tongue Groove T&G |
| Schedule | SCH 10, SCH 20, SCH 30, SCH 40, SCH 60, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160 SCH STD, SCH XS, SCH XXS SCH 10s, SCH 40s, SCH 80s |
| Standard | ASME B16.1, ASME B16.5, ASME B16.20, ASME B16.21, ASME B16.24, ASME B16.34, ASME B16.36, ASME B16.42, ASME B16.47 MSS SP-6, MSS SP-9, MSS SP-25, MSS SP-44, MSS SP-53, MSS SP-54, MSS SP-55, MSS SP-75, MSS SP-106 API 605, API 6A, API 6B |
Product Specifications
| Carbon Steel | ASME/ASTM SA/A105N |
|---|---|
| High Yield Carbon Steel | ASTM A694 F42/ 46/ 52/ 60/ 65/ 70 ASTM A707 L1~ L8 |
| Low Temp Carbon Steel | ASME/ASTM SA/A350 LF1/ 2/ 3/ 6 |
| Chrome Moly | ASME/ASTM SA/A182F2, F5 ,F9, F11, F12, F22, F91 |
| Stainless Steel | ASME/ASTM SA/A182F304/304L, 316/316L, 309, 310, 304H, 310H, 317/317L, 321, 321H, 347, 347H, 904L |
| Duplex/ Super Duplex | UNS S31803, S32205, S32750, S32760 ASME/ASTM SA/A182F51, 53, 55, 60 |
| Nickel Alloy | ASME/ASTM SB564, UNS N02200 (Nickel 200), UNS N02201 (Nickel 201) UNS N04400 (Monel 400), ), UNS N06600 (Inconel 600) UNS N06601 (Inconel 601), UNS N06625 (Inconel 625) UNS N08810 (Incoloy 800H), UNS N08811 (Incoloy 800HT) UNS N08825 (Inconel 825), UNS N010276 (Hastelloy C276) |
| Remark | HIC, PED 2014/68/EU, NACE MR0175, NORSOK, Weld Overlay available |
Connect With Our Team For Product Enquiries
Types of Flanges
Carbon Steel Flange
durable, cost-effective choice for high-pressure and temperature applications
Stainless Steel Flange
corrosion-resistant, ideal for chemical, food, and water systems
Blind Flange
closes off the end of a piping system
Slip-On Flange
slides over the pipe and is welded in place
Welding Neck Flange
tapered hub, butt-welded for high-stress applications
Socket Weld Flange
pipe inserted into socket, then fillet welded
Threaded Flange
screwed onto pipe without welding
Lap Joint Flange
used with a stub end, allows easy alignment
Anchor Flange
provides a fixed point to absorb forces in pipelines
Orifice Flange
designed for flow measurement with orifice plates
Carbon Steel Flanges
Mild steel or low carbon steel is typically used for Carbon Steel Flanges Malaysia because they are strong, tough, but difficult to temper. Carbon steel flanges are made of iron and carbon and strengthened with alloying components. They are designed for strong performance. Complying with ASME B16.5 and B16.47 requirements, these flanges exhibit remarkable robustness and endurance, making them perfect for applications involving high pressure and high temperature. You can acquire high-quality carbon steel flanges from Saliran Industrial Supplies, which is the leading Steel Flange Suppliers in Malaysia.
Stainless Steel Flanges
Stainless Steel Flanges are tough and hygienic in a variety of applications because they are made of corrosion-resistant alloys like 304 or 316. Suitable for severe settings, these flanges offer outstanding strength and conform to standards including ASTM A182 and ASME B16.5. Due to its unique characteristics, the stainless Steel Flanges Malaysia are one of the many types of flanges that are available by many Steel Flange Suppliers Malaysia. Due to its extreme rust resistance, a stainless steel flange can outlive a carbon steel flange indefinitely. According to the Steel Flange Suppliers, corrosion resistance and strength are the main factors to consider when selecting stainless Steel Flanges Malaysia over other kinds of metal flanges.

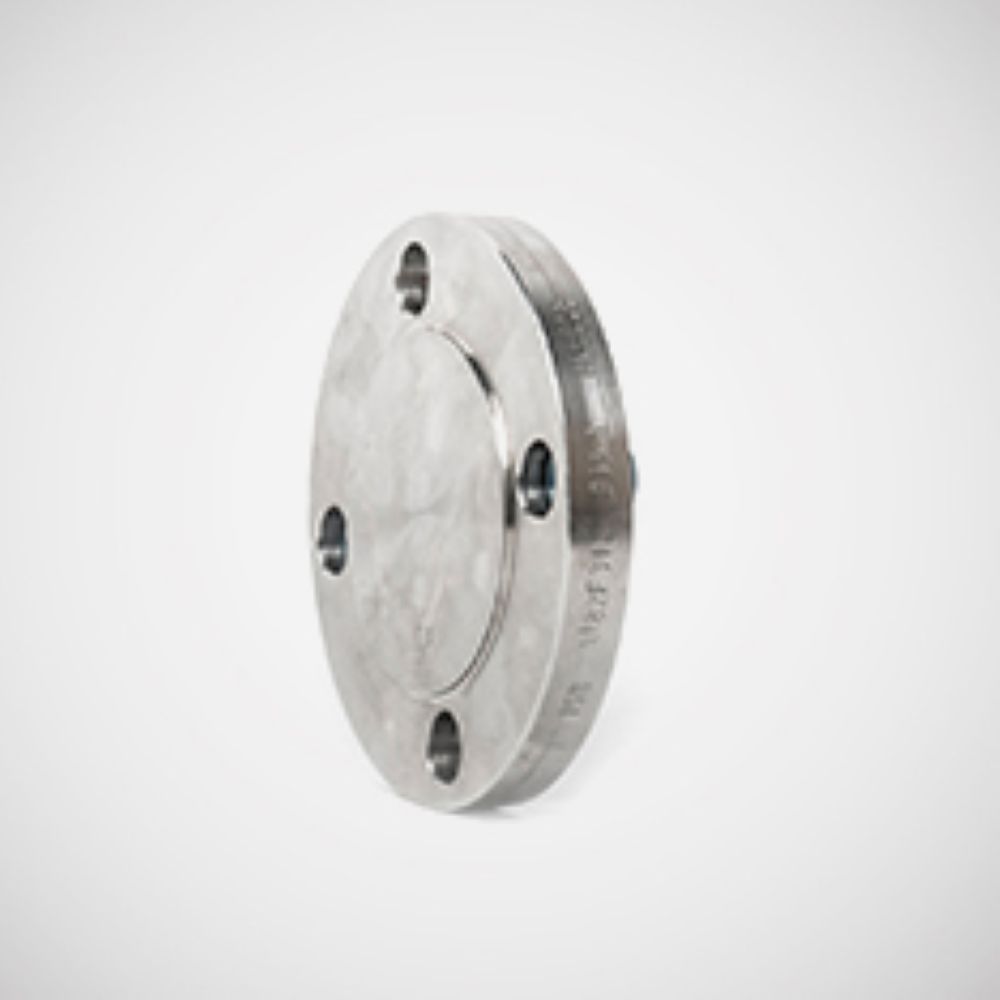

Blind Flange
In general, a blind flange is a flange without a hub or a drilled center. Blind flange features a comparable bolting pattern, the same face type, and the same face thickness as a flange. Additionally, a pressure vessel’s nozzle aperture can be sealed with blind flange.

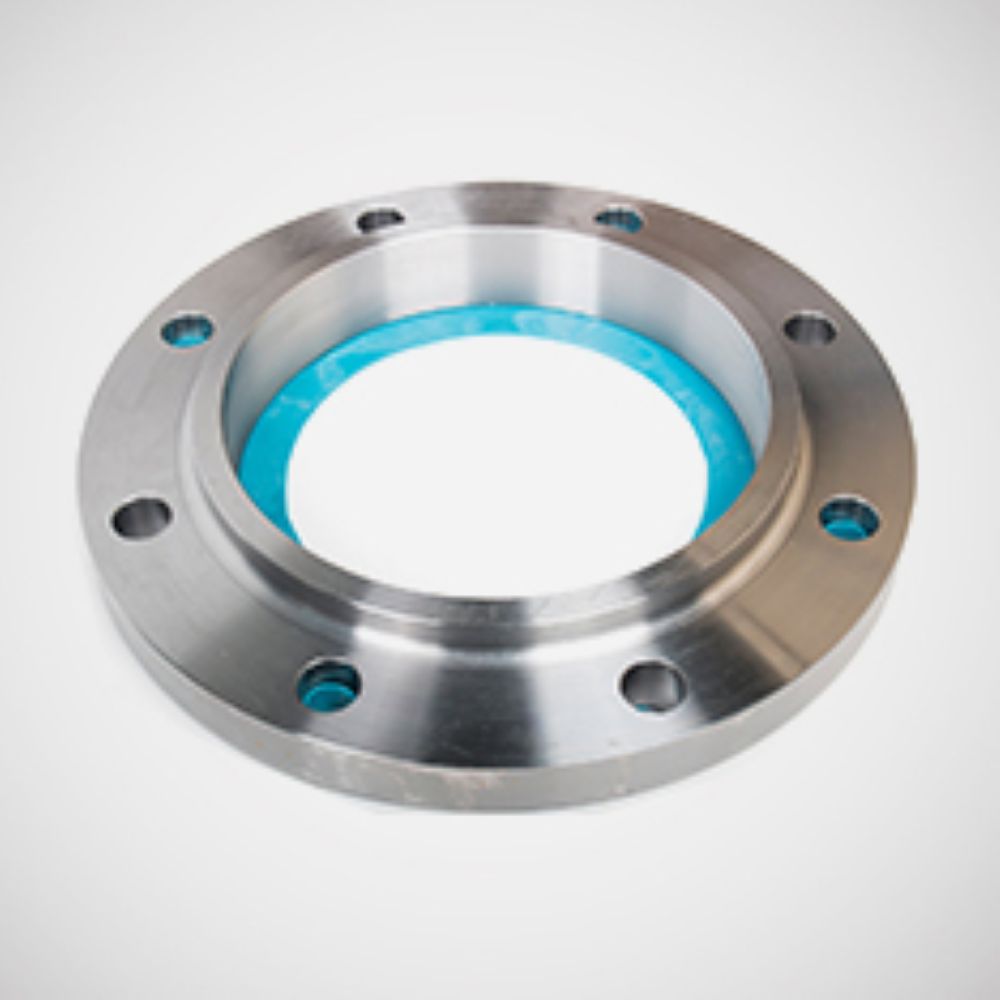

Slip On Flanges
A straightforward and excellent substitute for a weld neck is the slip-on flanges. The bore of the slip on will give ample amount of space for the matching pipe. Most slip-on flanges have hubs that frequently resemble raised faces in terms of dimension.

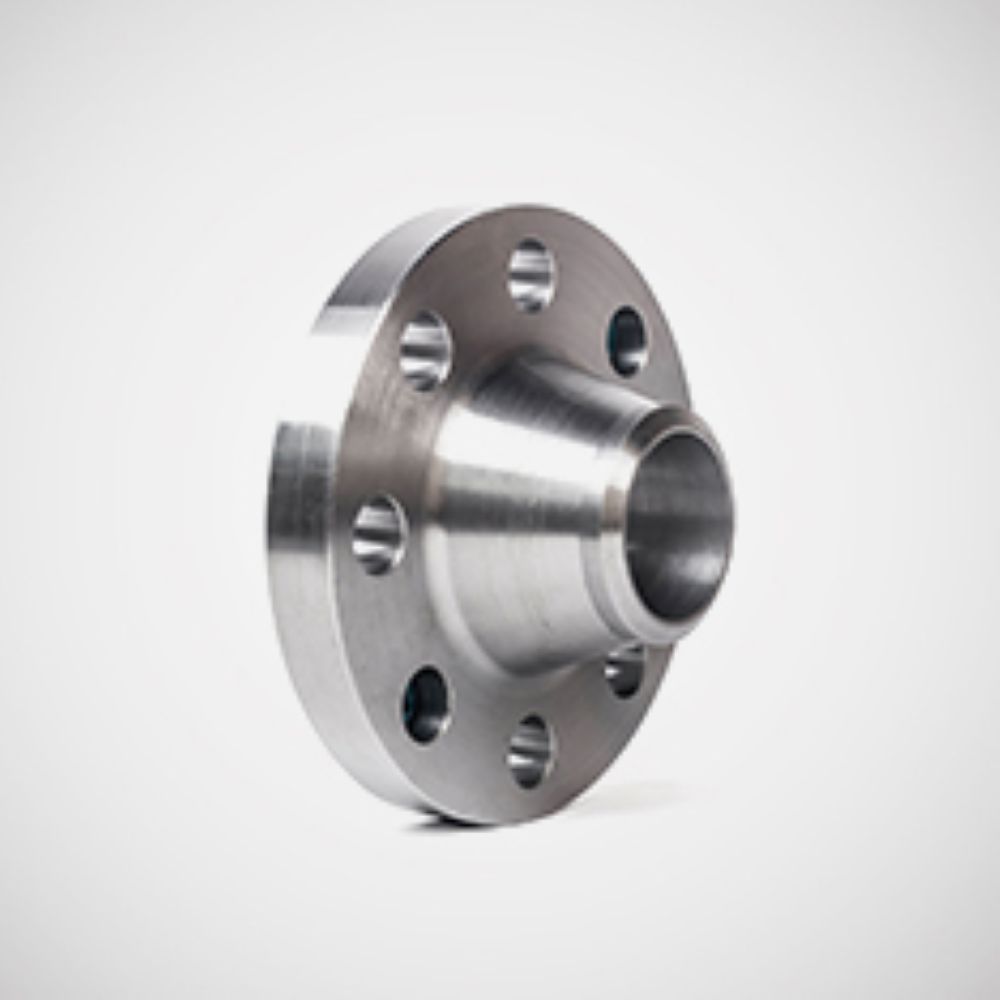

Weld Neck Flanges
Weld Neck Flanges are simple to distinguish at the long tapered hub. Weld neck flanges have two types. Pipes are utilized with the standard type. The long form, which is employed in process plants instead of pipes, is available. A fitting with a circumferential projecting rim is what makes up weld neck flanges.
Socket Weld Flanges
A pipe is placed into the socket of socket weld flanges, which has one fillet weld on the outside of the flange hub to hold the pipe in place. With a counter-bore in the center to enable a clean weld of pipe into the socket, socket weld flanges are a less popular but no less reliable connection for flanges that need less overall space than typical weld neck flanges.
Threaded Flange
A threaded flange is designed with internal threads that allow it to be screwed directly onto a pipe without welding. This makes installation quick and convenient, especially for low‑pressure systems or where welding is impractical. They are commonly used in small‑diameter piping and temporary connections.
Lap Joint Flange
Lap joint flanges are used together with a stub end, allowing the flange to rotate freely for easy bolt alignment. They are ideal for systems requiring frequent dismantling or maintenance, as they can be reused while the stub end absorbs most of the wear.
Anchor Flange
Anchor flanges provide a fixed point in a pipeline to absorb axial forces and prevent movement. They are welded directly into the pipeline and act as a structural support, often used in long runs of piping or where directional changes create stress.
Orifice Flange
Orifice flanges are specially designed to hold orifice plates for flow measurement. They include tapped holes for pressure gauges and are typically used in metering systems to measure the rate of fluid or gas passing through a pipeline.
